Waagner Biro Indonesia Truss Bridges
Standard Length Truss Bridges
Typical Spans:
From 30 meters to 70 meters
Typical Characteristics:
Warren through truss
5-meters bays ensure modularity between spans
Class A width: 1m sidewalk + 7m roadway + 1m sidewalk
Class B width: 0.5m sidewalk + 6m roadway + 0.5m sidewalk
Utilizes steel deck as permanent formwork
Double pipe handrails
Elastomeric bearings with steel plate reinforcement
Deck protection angle
High tension Bolts
Full hot dip galvanizing to all elements
Standard Supplied Erection Aids:
Bolts spares
Drift pins for precise bolt hole alignment
Temporary Deck Bracing Angles
Typical Supply Time:
2.5 months
Design standard:
PT. Waagner Biro Indonesia always complies with the prevailing bridge standards imposed by the relevant Road and Bridge Authorities

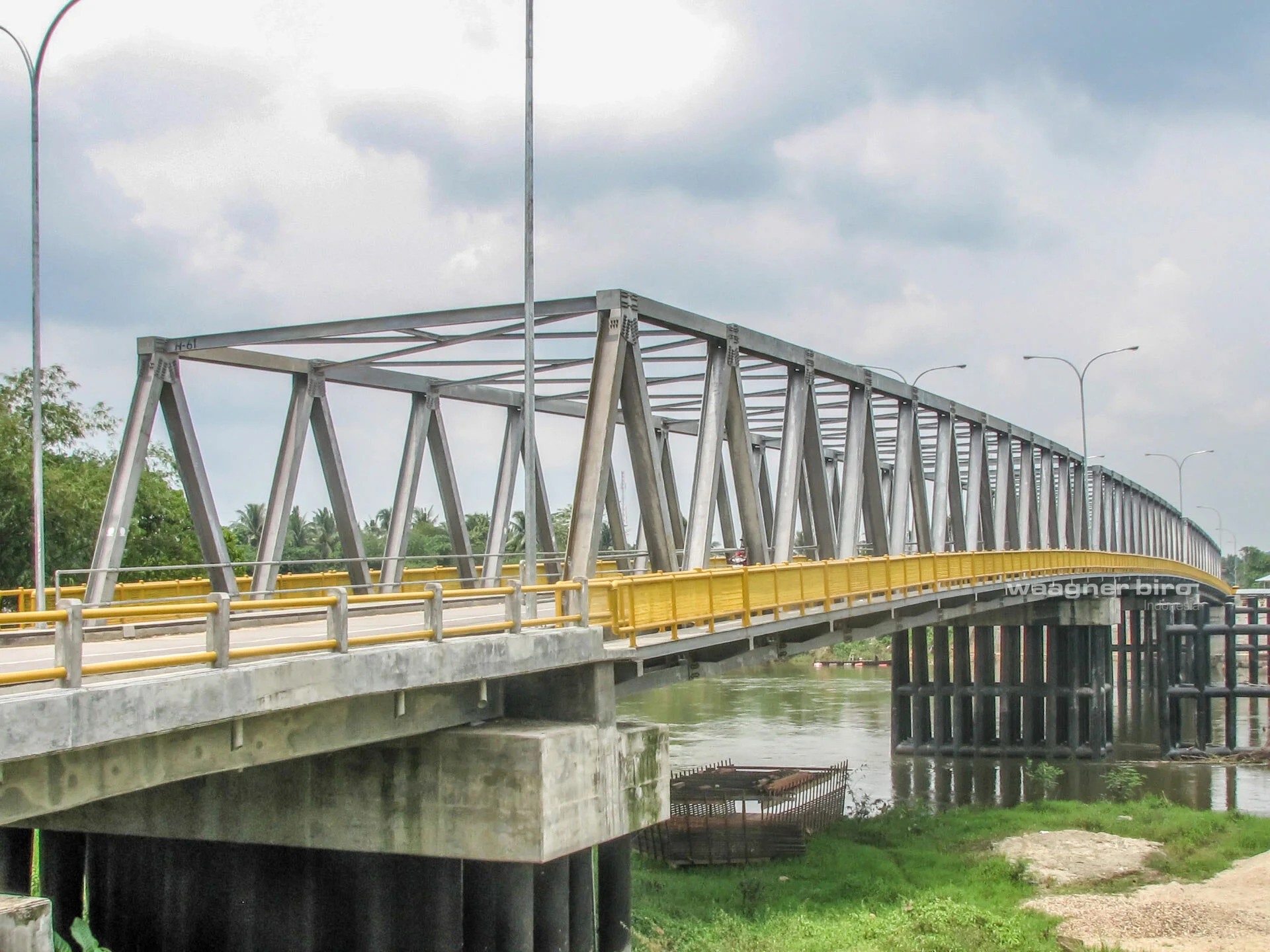

Long-Span Truss Bridges
Typical Spans:
Longer than 70 meters
Typical Characteristics:
Warren through truss
5-meters bays ensure modularity between spans
Class A width: 1m sidewalk + 7m roadway + 1m sidewalk
Class B width: 0.5m sidewalk + 6m roadway + 0.5m sidewalk
Utilizes steel deck as permanent formwork
Double pipe handrails
Elastomeric bearings with steel plate reinforcement
Deck protection angle
High tension Bolts
Full hot dip galvanizing to all elements
Standard Supplied Erection Aids:
Bolts spares
Drift pins for precise bolt hole alignment
Temporary Deck Bracing Angles
Typical Supply Time:
4 months
Design standard:
PT. Waagner Biro Indonesia always complies with the prevailing bridge standards imposed by the relevant Road and Bridge Authorities
